Name: SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: capteur SC25V
Price: 5,000.00 USD
Availability: InStock

À la maison > produits > capteur de qualité de l'eau >

SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement

Pt1000 Integration pH Sensor

Pt1000 Temperature Sensor SC25V

Isothermal Point pH 7 Water Quality Sensor

Nom de marque:

Yokogawa

Numéro de modèle:

capteur SC25V

Nous contacter

Demandez un devis

SC25V pH Sensor with Pt1000 Integration and Temperature Sensor for Accurate pH 7 Measurement

Détails du produit

Bague de mise à la terre:

Titane

Capteur de mesure:

Verre (type g ou l)

Joint torique:

Viton (sauvegarde EPDM)

Junction de référence:

PTFE poreux

Point isotherme::

pH 7 / 3,3 m KCl

Mettre en évidence:

Pt1000 Integration pH Sensor

Pt1000 Temperature Sensor SC25V

Isothermal Point pH 7 Water Quality Sensor

Conditions de paiement et d'expédition

Quantité de commande min

1pcs

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours de travail

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenez le meilleur prix

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenez le meilleur prix

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenez le meilleur prix

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenez le meilleur prix

Nous contacter

86--17719566736

Contactez-nous maintenant

Description du produit

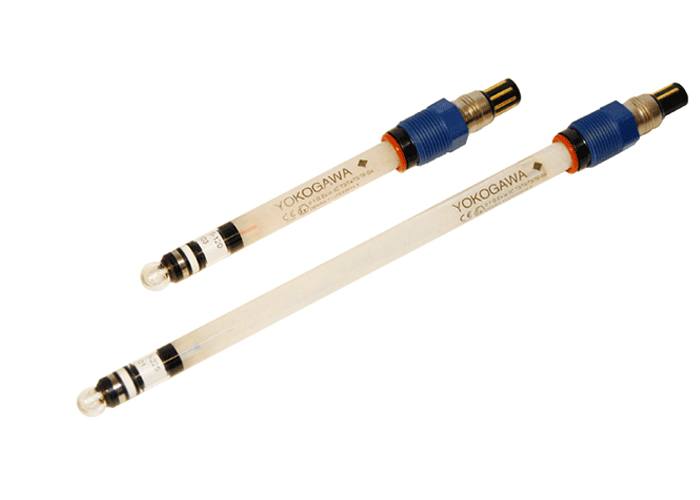

pH Sensor SC25V with External Liquid Earth and Built-in Temperature Sensor

For pH measurement and control, stable, reliable, and accurate readings are essential. The SC25V pH sensor is engineered to deliver consistent, precise results in all applications.

The integrated temperature sensor is positioned near the pH measuring glass, enhancing temperature compensation accuracy and, consequently, pH measurement precision. The large titanium liquid earth minimizes interference from stray or ground loop currents that could compromise the reference sensor.

Key Features

External titanium Liquid Earth for measurement stability
Integrated Pt1000 in pH compartment for highly accurate temperature compensation
Certified for use in Hazardous areas
Versatile installation options: in-line, immersion, or off-line
CIP and Steam cleaning compatible*
Operational up to 130°C / 266°F
Effective in low conductivity applications (from 10 μS/cm)
SC25V-ALP25 and -BLP25: Designed for chemically harsh environments and high temperatures
SC25V-AGP25 and -BGP25: Suitable for general-purpose applications
Available with ID-chip for compatibility with SENCOM platform

Measuring Elements

pH glass electrode
Silver/silver chloride reference
Solid platinum electrode
Pt1000 temperature sensor

Wetted Parts

Sensor body/shaft: AR-Glass, PEEK
Earthing ring: Titanium
Measuring sensor: Glass (type G or L)
O-ring: Viton (EPDM back-up)
Reference junction: Porous PTFE

Functional Specifications (at 25°C)

Parameter	Specification
Isothermal point	pH 7 / 3.3M KCl
Reference system	Ag/AgCl with saturated KCl
Glass impedance	G-Glass: 200 MΩ nominal L-Glass: 775 MΩ nominal
Junction resistance	< 5 kΩ
Liquid outlet	Non-flow single junction
Temperature element	Pt1000 to IEC 751
Asymmetry potential	8 ± 15 mV
Slope	> 96% (of theoretical value)
Sensor length	120 mm and 225 mm

Note: The integrated temperature sensor is for process compensation and indication only, not for process temperature control.

Dynamic Specifications

Response time pH: t₉₀ < 15 sec. (for 7 to 4 pH step)
Response time temperature: t₉₀ < 90 sec. (for 10°C step)
Stabilization time pH: < 2 min. (for 0.02 pH deviation during 10 sec.)

Operating Range

Parameter	Range
pH	0 to 14
Temperature (G-Glass)	-10 to +80°C (14 to 176°F)
Temperature (L-Glass)	+15 to +130°C (59 to 266°F)
Pressure	0 to 10 barg (0 to 145 psi) 0 to 0.985 barg (0 to 14.36 psi) (under pressure)
Conductivity	> 10 µS/cm

Note: Damaged screw threads may affect maximum process pressure tolerance.

Note: While the pH operating range at room temperature is 0-14, operation at high temperatures or outside 2-12 pH will significantly reduce sensor lifespan.

Note: For intrinsically safe versions, the upper process temperature is limited by the ambient temperature (tₐₘₙ) defined for each temperature class (T3, T4, T5, and T6).
