Name: Honeywell Model 427 Anti-Clog High Accuracy Wide Pressure Range Wing Union Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modèle 427
Price: 152.00 USD
Availability: InStock

À la maison > produits > Capteur de pression de précision >

Honeywell Model 427 Anti-Clog High Accuracy Wide Pressure Range Wing Union Pressure Transmitter

Anti-Clog Pressure Transmitter

High Accuracy Wing Union Sensor

Wide Pressure Range Water Quality Sensor

Nom de marque:

Honeywell

Certification:

Numéro de modèle:

Modèle 427

Nous contacter

Demandez un devis

Honeywell Model 427 Anti-Clog High Accuracy Wide Pressure Range Wing Union Pressure Transmitter

Détails du produit

Plage de pression:

0 psi à 5000 psi; 0 psi à 6000 psi; 0 psi à 10000 psi; 0 psi à 15000 psi; 0 psi à 20000 psi; 0 bar à

Précision:

± 0,2% de la ligne droite la mieux ajustée (BFSL)

Étalonnage:

Calibration à 5 points: 0%, 50% et 100% de l'échelle à grande échelle (FS)

Sortir:

4ma à 20mA, plage de mesure à 2 fils

Température de fonctionnement:

-43 ℃ à 93 ℃ (-45 ℉ à 200 ℉)

Mettre en évidence:

Anti-Clog Pressure Transmitter

High Accuracy Wing Union Sensor

Wide Pressure Range Water Quality Sensor

Conditions de paiement et d'expédition

Quantité de commande min

1pcs

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours de travail

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Obtenez le meilleur prix

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

Obtenez le meilleur prix

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Obtenez le meilleur prix

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Obtenez le meilleur prix

Nous contacter

86--17719566736

Contactez-nous maintenant

Description du produit

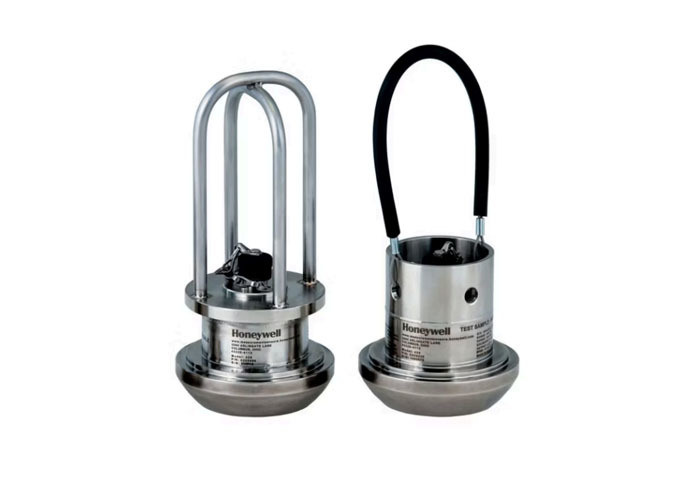

Honeywell Model 427 Wing Union Anti-Clog Pressure Transmitter

Honeywell's Model 427 Wing Union Pressure Transmitter is a robust and durable solution designed for both onshore and offshore installations. Featuring a 1502 Wing Union, this transmitter incorporates a newly designed pressure port with wider diameter and shallower depth, enabling viscous mud to pass through without residue buildup.

The transmitter delivers maximum accuracy of ±0.2% BFSL (Best Fit Straight Line), providing continuous, high-precision pressure measurement for critical oil industry applications including drilling operations. Its independent pressure-sensing diaphragm minimizes zero drift during torquing and eliminates long-term signal deviation in electric fields.

The fully welded construction with patented electron beam welding process ensures superior seal integrity under all conditions. The integrated wing union design and special assembly process provide exceptional vibration and shock resistance for reliable operation in harsh environments.

Key Features

Constructed with long-life Inconel® X-750 material
Rugged, robust design for demanding environments
Comprehensive RFI/EMI protection
Intrinsically safe operation
High accuracy of ±0.2% BFSL
Optional single-board temperature sensor
CE certified for compliance
Fast delivery service available

Industrial Applications

Oil and gas drilling operations
Mud pumps and mud logging systems
Fracturing and cementing processes
Acidizing applications
Wellhead measurement systems

Technical Specifications

Pressure Specifications
Pressure Range	0 psi to 5000 psi; 0 psi to 6000 psi; 0 psi to 10000 psi; 0 psi to 15000 psi; 0 psi to 20000 psi; 0 bar to 350 bar; 0 bar to 400 bar; 0 bar to 700 bar; 0 bar to 1000 bar; 0 bar to 1350 bar
Accuracy	±0.2% of Best Fit Straight Line (BFSL)
Calibration	5-point calibration: 0%, 50%, and 100% of Full Scale (FS)
Output	4mA to 20mA, 2-wire measurement range
Environmental Specifications
Operating Temperature	-43℃ to 93℃ (-45℉ to 200℉)
Compensation Temperature	-34℃ to 82℃ (-30℉ to 180℉)
Temperature Effect - Zero	0.018% of Full Scale (FS)/℃ (0.01% of Full Scale (FS)/℉)
Temperature Effect - Span	0.018% of Reading/℃ (0.01% of Reading/℉)
Sealing	Hermetic IP68/NEMA 6P
Electrical Specifications
Supply Voltage	9 Vdc to 28 Vdc
Insulation Resistance	> 100 mΩ at 50 Vdc
Maximum Loop Resistance	Linearity from 950 Ω (at 28V) down to 0 Ω (at 9V)
Circuit Protection	Reverse polarity protection for power supply wires
RFI/EMI Protection	Noise immunity from 5000 Hz to 1GHz
Frequency Response	Customer-specified and factory-installed filters for minimization; frequency response from 10Hz up to 2500Hz max
Zero & Span Adjustable	Field adjustable by removing the connector
Shunt Calibration Data	Included
Electrical Terminals (Standard)	Compatible with MS series, 4-pin, with connector; made of stainless steel dedicated to the oil and gas industry, providing full sealing
Mechanical Specifications
Media	Corrosive and abrasive service, Inconel X-750
Overload, Safety	150% of rated full-scale pressure or limit of 1502 fittings
Overload, Burst	300% of rated pressure or limit of 1502 fittings
Pressure Port	1502 Wing Union, 51mm [2in] pipe, male end with external threads
Orifice Diameter	22.86 mm [0.9 in] inner diameter * 10.16 mm [0.4 in] depth; 25.4 mm [1.0 in] inlet diameter
Wetted Material	Inconel X-750
Weight	2722 g [6 lb]
Housing Material	316L (stainless steel with labels featuring molded and embossed characters)
