DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Nom de marque:

Yokogawa

Numéro de modèle:

DM8

Nous contacter

Demandez un devis

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Détails du produit

Plage de mesure:

Densité: 0,5 à 2,0 g / cm3

Mesurer la température liquide:

-10 à 100 ℃

Mesurer la pression liquide:

2 MPa G ou moins

pression withstandable:

4,9 MPa G

Entrée du signal de sortie:

0,05 à 0,5 g / cm3 réglable

Mettre en évidence:

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Conditions de paiement et d'expédition

Quantité de commande min

1pcs

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours de travail

Conditions de paiement

Moneygram, Western Union, T / T, D / P, D / A, L / C

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenez le meilleur prix

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenez le meilleur prix

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenez le meilleur prix

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenez le meilleur prix

Nous contacter

86--17719566736

Contactez-nous maintenant

Description du produit

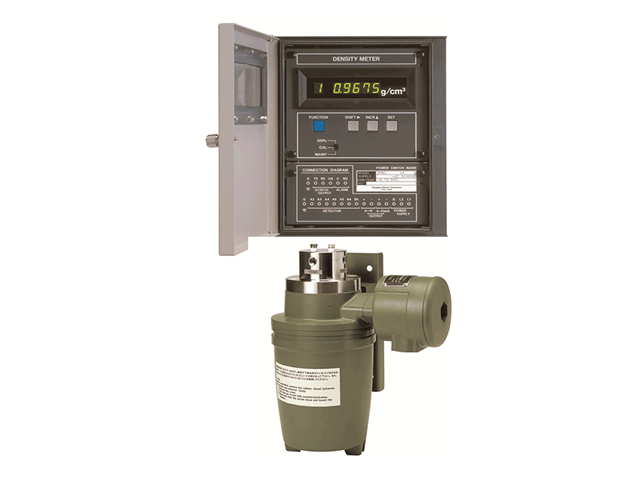

Liquid Density Analyzer DM8C, VD6

Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:

Key Features

High sensitivity and stability for reliable measurements
One-touch calibration using standard solution
Field-configurable measuring range
Failure alarm display and output
Outdoor-rated converter installation

The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.

Technical Specifications

Measurement Object	Liquid density
Measurement Principle	Vibration density measurement
Measurement Range	0.5 to 2.0 g/cm³
Operating Conditions	Liquid temperature: -10 to 100℃ Liquid pressure: ≤2 MPa G Withstandable pressure: 4.9 MPa G
Output Signals	Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ) Digital: RS-232C
Performance	Linearity: ±0.5% of span (≤0.2 g/cm³) Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog)
Physical Specifications	Converter weight: 7.5 kg Detector weight: 12.0 kg Enclosure: Dust and rain proof
Power Requirements	90-132V AC or 180-264V AC, 50/60Hz
