Name: AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Un AK6
Price: 5,000.00 USD
Availability: InStock

À la maison > produits > Temperature Sensor >

AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Lieu d'origine:

Chine

Nom de marque:

KACISE

Certification:

Numéro de modèle:

Un AK6

Nous contacter

Demandez un devis

AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

Détails du produit

Consommation d'énergie:

≤5VA

Tension nominale:

180 V–240 V CA, 50 Hz

Conservation des données:

Mémoire non volatile

Température de stockage:

-25°C–65°C (pas de condensation ni de gel)

Résolution:

1°C, 0,1°C (facultatif)

Méthode de câblage:

Connexion des bornes

Précision de mesure:

± 0,5% FS

Mettre en évidence:

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Conditions de paiement et d'expédition

Quantité de commande min

1 PIÈCES

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

86--17719566736

Contactez-nous maintenant

Description du produit

AK6 Series Temperature Controller

Electrical Specifications

Item	Specification
Rated Voltage	180V-240V AC, 50Hz
Power Consumption	≤5VA
Operating Environment	Ambient temperature: 0-50°C Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature	-25°C-65°C (no condensation or frost)
Resolution	1°C, 0.1°C (optional)
Wiring Method	Terminal connection
Measurement Accuracy	±0.5%FS
Data Retention	Non-volatile memory
Installation Environment	Indoor installation, free from corrosive gases
Relay Output	Relay control output: AC220V/DC30V, 3A
Analog Output	(Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ

Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

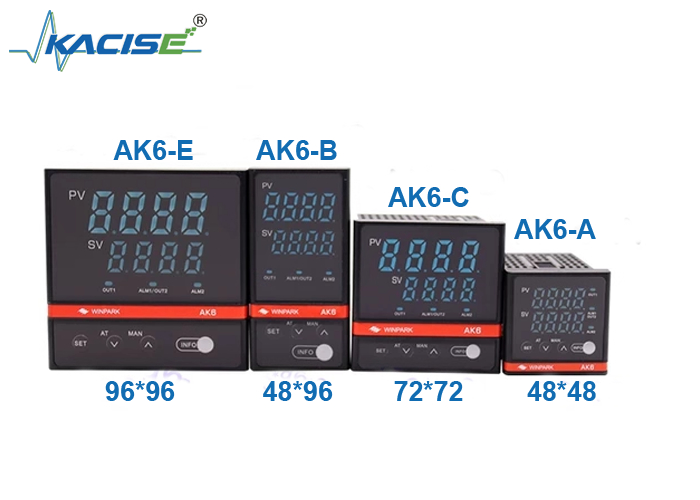

① Front Size: A: 48*48, B: 48*96, C: 96*48, D: 72*72, E: 96*96
② Input Signal: K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
③ Power Supply: A: AC power supply, D: DC power supply, S: Battery test
④ Output Function: 1: Relay output, 2: Analog output, 3: Logic level output
⑤ Control Mode: 0: Single setpoint control (heating), 1: Dual setpoint control (heating/cooling), 2: Time proportional control, 3: On/off control, 4: PID control
⑥ Additional Functions: 0: None, 1: Communication function (RS485), 2: Timer function, 3: Programmable segment control function
⑦ Custom Code: Custom product, defined based on specific order requirements

Appearance and Mounting Dimensions

Unit: mm

Model	Panel Size (mm)	Overall Dimensions (L * W * H, mm)	Mounting Hole Size (mm)
AK6-A	48 * 48	76 * 45 * 45	46 * 46
AK6-B	48 * 96	72 * 44 * 90	45 * 91
AK6-D	72 * 72	72 * 66 * 66	67 * 67

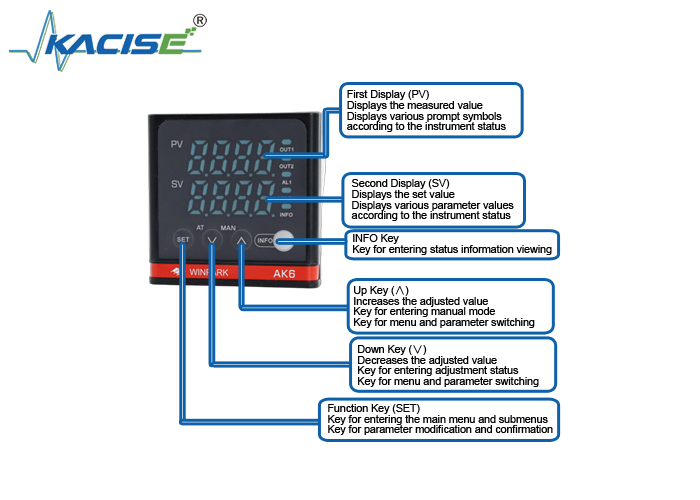

Operation Panel Function Description
