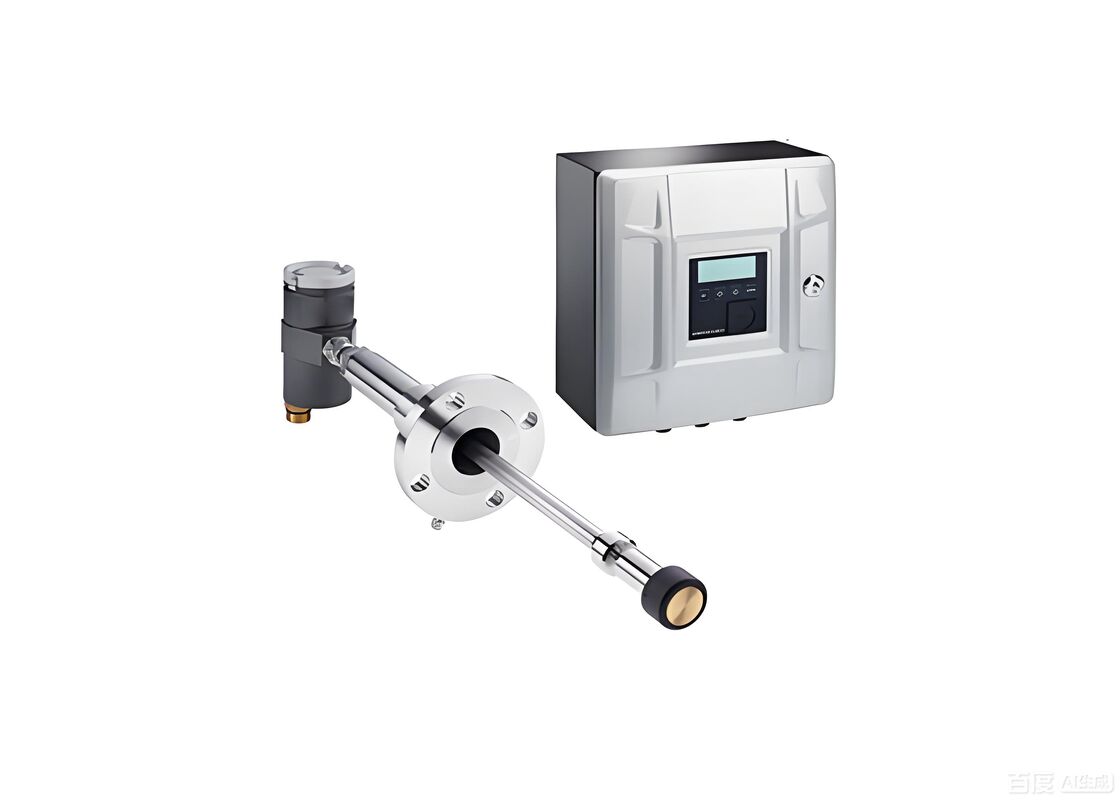

Name: FLOWSIC100 Flare-XT ultrasonic flow measurement instrument
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLUXIC100
Price: 892.00 USD
Availability: InStock

À la maison > produits > compteur de débit ultrasonique >

FLOWSIC100 Flare-XT ultrasonic flow measurement instrument

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Lieu d'origine:

Suisse

Nom de marque:

Endress+Hauser

Certification:

Numéro de modèle:

FLUXIC100

Nous contacter

Demandez un devis

FLOWSIC100 Flare-XT ultrasonic flow measurement instrument

Détails du produit

Principe de mesure:

Mesure de la différence de temps de transit par ultrasons

Variables mesurées:

Débit massique, débit volumétrique sc (état standard), débit volumétrique ac (état réel), poids molé

Plage de mesure:

0,03 m/s ... 120 m/s (0,1 pi/s ... 394 pi/s)

Taille nominale du tuyau:

Mesure 1 voie 4 ″ ... 86 ″

Communication numérique:

CERF

Mettre en évidence:

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 JOURS OUVRABLES

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

Proline Prosonic Flow E 100 ultrasonic flowmeter

Obtenez le meilleur prix

Proline Prosonic Flow G 300 ultrasonic flowmeter

Obtenez le meilleur prix

Proline Prosonic Flow G 500 ultrasonic flowmeter

Obtenez le meilleur prix

Proline Prosonic Flow I 400 ultrasonic flowmeter

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

FLOWSIC100 Flare-XT Ultrasonic Flow Measurement Instrument

Advanced ultrasonic flow measurement instrument designed for demanding industrial applications including flare gas measurement, steam flow monitoring, and process optimization.

Key Specifications

Measured Variables	Mass flow rate, volumetric flow (standard condition), volumetric flow (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity
Measuring Range	0.03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s)
Conformities	ATEX: 2014/34/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU, PED: 2014/68/EU

Applications

Detection of flare gas leaks and steam flow measurement
Monitoring of gas losses and steam injection in flare gas burning
Process optimization and predictive maintenance
Flare gas measurement for natural gas production and processing
Flare gas measurement in chemical and petrochemical plants
Measurement of LNG boil-off gas

Device Features

Reliable measurement at high gas velocities and changing gas compositions
Direct mass flow calculation without additional gas analyzers
Intuitive FLOWgate™ software for commissioning, operation and diagnostics
Self-monitoring, self-testing and predictive maintenance capabilities

Key Benefits

Compliance with multiple standards and guidelines for flare gas measurement
Maximum plant availability and operational reliability
Compatibility with current and future communication architectures
Independent maintenance with verification on demand
Easy replacement of existing measurement systems with retrofit solutions

Technical Details

Measuring Principle	Ultrasonic transit time difference measurement
Max. Measurement Error	Volumetric flow, a.c.: 1% ... 5% (≥ 0.3 m/s) Mass flow rate a.c.: 2% ... 5.5% (≥ 0.3 m/s) With spool piece and flow calibration: 0.5% ... 2%
Medium Temperature Range	-196 °C ... +280 °C (-320 °F ... +536 °F)
Operating Pressure Range	Up to 20 bar(g) depending on device flange and certification
Nominal Pipe Size	1-path: 4″ ... 86″, 2-path: 12″ ... 86″

Hazardous Area Approvals

Comprehensive certifications for Interface Unit and Sensors including IECEx, ATEX, and NEC/CEC approvals for Zone 1, Zone 2, and Division 1/2 applications with various gas groups and temperature classes.

Outputs & Communication

Analog Outputs	Up to 6 outputs (16-bit, 4-20 mA), galvanically isolated, NAMUR NE43 compliant
Digital Outputs	Switching outputs (70 mA max) and frequency outputs (10 kHz max)
Digital Communication	HART, MODBUS, FOUNDATION FIELDBUS
