Name: Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD120
Price: 5,000.00 USD
Availability: InStock

À la maison > produits > capteur de qualité de l'eau >

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Lieu d'origine:

CHINE

Nom de marque:

kacise

Certification:

Numéro de modèle:

KWD120

Nous contacter

Demandez un devis

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

Détails du produit

Précision de mesure:

1% à 3%

Résolution:

5 mm ou 0,5% (le plus grand)

Afficher:

Affichage LCD chinois

Sortie analogique:

4 ~ 20mA / 510Ω Charge

Sortie de relais:

2 voies AC 250V / 5A ou DC 30V / 5A, statut programmable

Mettre en évidence:

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Conditions de paiement et d'expédition

Quantité de commande min

1pcs

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours de travail

Conditions de paiement

L / C, D / A, D / P, T / T, Western Union, Moneygram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Obtenez le meilleur prix

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Obtenez le meilleur prix

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Obtenez le meilleur prix

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Obtenez le meilleur prix

Nous contacter

86--17719566736

Contactez-nous maintenant

Description du produit

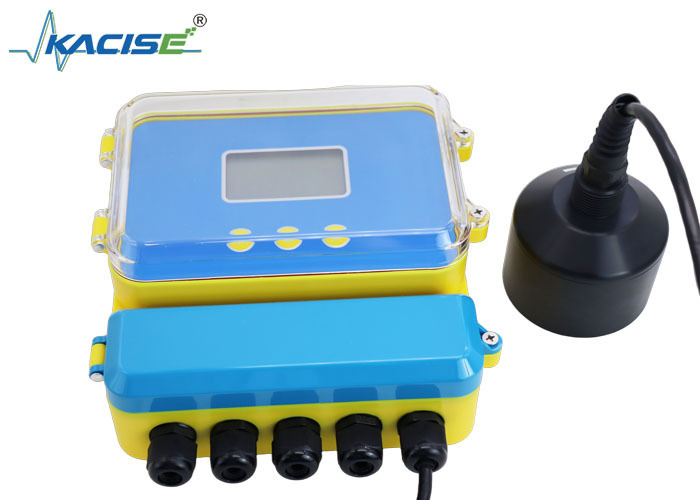

KWD120 Split-type Ultrasonic Sludge Level Meter

Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

Technical Parameters

Function	Split type
Range	Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy	1%-3%
Resolution	5mm or 0.5% (whichever is larger)
Display	Chinese LCD display
Analog Output	4-20mA/510Ω load
Relay Output	2-way AC 250V/5A or DC 30V/5A, programmable status
Power Supply	Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient Temperature	Display: -20°C to +60°C, Probe: -20°C to +80°C
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display: IP65, Probe: IP68
Probe Cable	Standard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)	mA output only: 1.5W (standard) 485 output only: 0.9W (optional) Both 485 and mA: 1.6W (optional) Add two relays: +0.8W (optional)
Power Consumption (220V)	220VAC split instrument: 5W

Dimensions

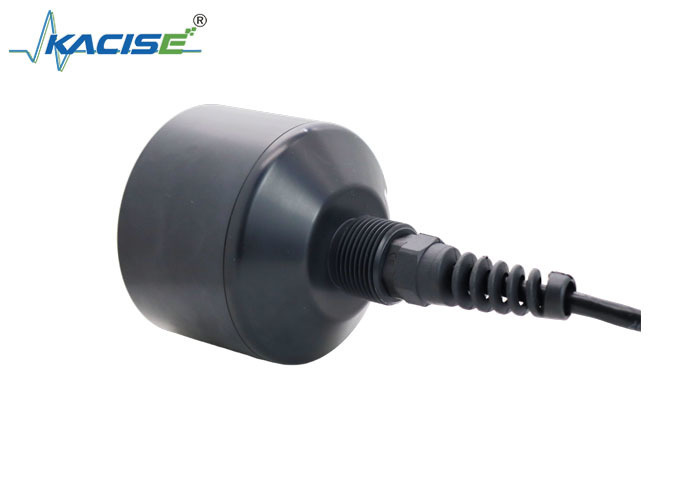

Probe Dimensions

50Khz and 200Khz dual frequency

300Khz

400Khz

500Khz

650Khz
