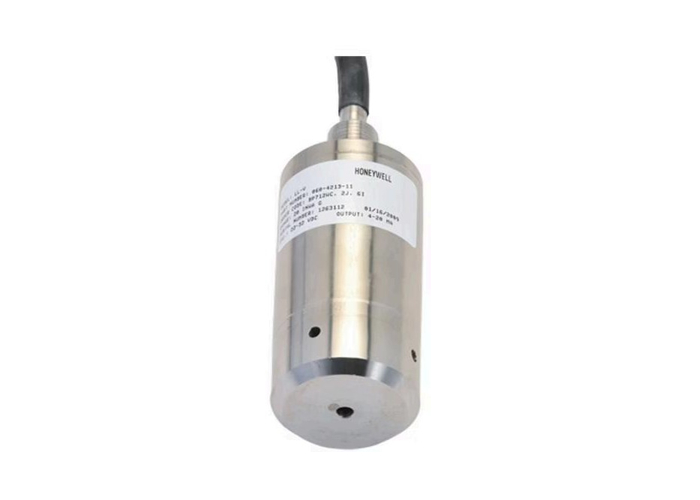

Honeywell Model LL-V Vertical Entry Liquid Level Sensor

Product Overview

The Model LL-V Liquid Level Sensor is constructed from 17-4 PH Stainless Steel and designed for vertical entry into tanks or stilling wells for complete submersion in fluid. Its all-welded stainless steel housing and pressure sensing diaphragm provide corrosion resistance for most fluids.

Key Features

True gage design
Conduit connection (1/2-14 NPT threaded)
Submersible construction
All-welded stainless steel housing
0.1% accuracy
Atmospheric vent tube in cable jacket
Vulcanized electrical cable with stainless steel ferrule

Industry Applications

Energy
Life Sciences
Utilities

Performance Specifications

Characteristic	Measure
Pressure ranges	0 mm to 12700 mm [0 in to 500 in] of water column 1, 2, 5, 10, 15, 25, 50 psig
Accuracy	±0.1% full scale (static error band)
Output	0 Vdc to 5 Vdc or 4 mA to 20 mA
Resolution	Infinite

Environmental Specifications

Characteristic	Measure
Temperature, operating	-18°C to 82°C [0°F to 180°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	±0.0025% full scale/°F
Temperature effect, span	±0.0025% reading/°F

Mechanical Specifications

Characteristic	Measure
Media	Liquids compatible with stainless steel
Overload, safe	150%
Overload, burst	400%
Pressure port	Screened flush diaphragm
Wetted parts material	Stainless steel
Weight	0.40 kg [14 oz]
Case material	All welded stainless steel

Range Codes

Range Code	Available Ranges
WC	20 in H2O
WE	30 in H2O
WG	50 in H2O
WI	100 in H2O
WK	120 in H2O
WM	150 in H2O
WP	200 in H2O
WR	300 in H2O
WS	500 in H2O
AP	1 psig
AR	2 psig
AT	5 psig
AV	10 psig
BJ	15 psig
BL	25 psig
BN	50 psig

Internal Amplifiers

Amplifier specifications	Voltage output: Option 2c	Current three-wire: Option 2j	Current two-wire: Option 2k
Output signal	0 Vdc to 5 Vdc @ 45 mA	4 mA to 20 mA	4 mA to 20 mA
Input power (voltage)	11 Vdc to 28 Vdc	22 Vdc to 32 Vdc	9 Vdc to 28 Vdc
Frequency response	3000 Hz	2500 Hz	2500 Hz
Operating temperature	-18°C to 82°C [0°F to 180°F]	-18°C to 82°C [0°F to 180°F]	-18°C to 85°C [0°F to 185°F]
