Name: Proline Promag H 10 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag H 10
Price: 2,540.00 USD
Availability: InStock

À la maison > produits > Compteur de débit électromagnétique >

Proline Promag H 10 electromagnetic flowmeter

Proline Promag H 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Lieu d'origine:

Suisse

Nom de marque:

Endress+Hauser

Certification:

Numéro de modèle:

Proline Promag H 10

Nous contacter

Demandez un devis

Proline Promag H 10 electromagnetic flowmeter

Détails du produit

Erreur de mesure de maximum:

Débit (standard) : ±0,5 % ou ± 1 mm/s (0,04 in/s)Débit volumique (option) : ±0,2 % ou ± 2 mm/s (0,08

Plage de mesure:

00,06 dm3/min à 600 m3/h (0,015 à 2650 gal/min)

Max. transformation de la pression:

PN 40, classe 150, 20K

Plage de températures moyennes:

¥20 à +150 °C (¥4 à +302 °F)

Plage de température ambiante:

–40 à +60 °C (–40 à +140 °F)

Capteur logeant le matériel:

1.4301 (304), résistant à la corrosion

Mettre en évidence:

Proline Promag H 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 JOURS OUVRABLES

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

Proline Promass S 300 Coriolis flowmeter

Obtenez le meilleur prix

Proline Promass P 500 Coriolis flowmeter

Obtenez le meilleur prix

Proline Promass Q 300 Coriolis flowmeter

Obtenez le meilleur prix

Proline t-mass F 500 thermal mass flowmeter

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

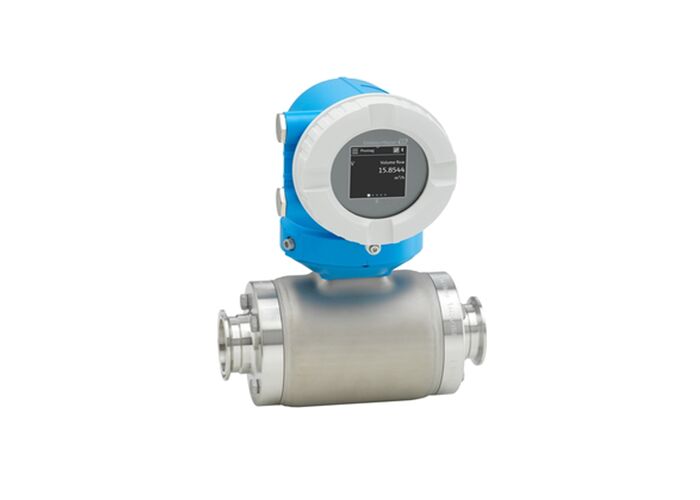

Proline Promag H 10 Electromagnetic Flowmeter

Flowmeter for basic hygienic applications with easy-to-use operation concept. For applications with sanitary requirements.

Field of Application

Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality.

Heartbeat Technology enables measurement reliability and extension of recalibration cycles. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

Easy integration into your plant infrastructure with IO-Link
Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Optimum usability - display with touch screen or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning - guided parameterization in advance and in the field
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 2 to 150 (¹⁄₁₂ to 6)
Measuring Range	0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Medium Temperature Range	-20 to +150 °C (-4 to +302 °F)
Max. Process Pressure	PN 40, Class 150, 20K
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)

Materials & Construction

Wetted Materials

Liner	PFA
Electrodes	1.4435 (316L); Alloy C22
Process Connections	Stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals	Aseptic molded seal (EPDM, FKM, silicone)

Housing Materials

Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated

Electrical & Communication

Display/Operation	2.4 LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
Outputs	4-20 mA HART (active/passive), Pulse/frequency/switch output, Modbus RS485, 4-20 mA
Digital Communication	HART, MODBUS RS485, IO-Link
Power Supply	DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

Hazardous Area	CSA, GP, KC
Metrological	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with ISO 9001:2015 requirements
Pressure	PED, CRN
Material	3.1 material certificate
Hygienic	EHEDG, 3-A, liner and seals acc. to FDA, cGMP
