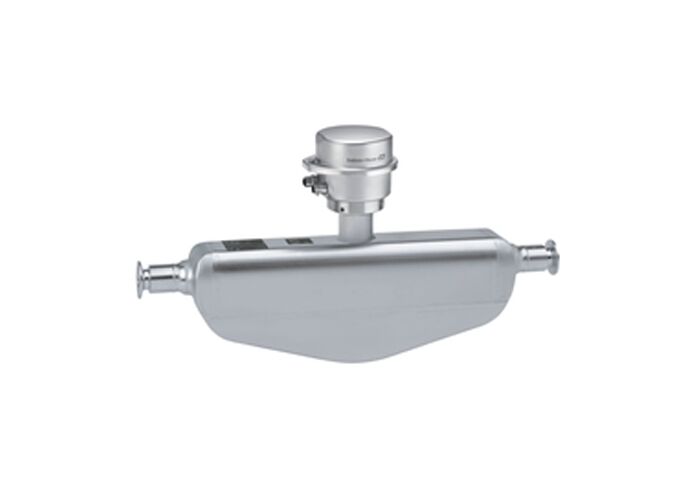

Name: Proline Promass P 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass P 100
Price: 2,540.00 USD
Availability: InStock

À la maison > produits > Compteur de débit électromagnétique >

Proline Promass P 100 Coriolis flowmeter

Proline Promass P 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Lieu d'origine:

Suisse

Nom de marque:

Endress+Hauser

Certification:

Numéro de modèle:

Proline Promass P 100

Nous contacter

Demandez un devis

Proline Promass P 100 Coriolis flowmeter

Détails du produit

Plage de mesure:

0 à 70 000 kg/h (0 à 2570 lb/min)

Plage de températures moyennes:

Standard : –50 à +150 °C (–58 à +302 °F)Option : –50 à +205 °C (–58 à +401 °F)

Plage de température ambiante:

Standard : –40 à +60 °C (–40 à +140 °F)Option : –50 à +60 °C (–58 à +140 °F)

Capteur logeant le matériel:

1.4301 (304), résistant à la corrosion

Alimentation:

20 à 30 V CC

Mettre en évidence:

Proline Promass P 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 JOURS OUVRABLES

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

Proline Promass S 300 Coriolis flowmeter

Obtenez le meilleur prix

Proline Promass P 500 Coriolis flowmeter

Obtenez le meilleur prix

Proline Promass Q 300 Coriolis flowmeter

Obtenez le meilleur prix

Proline t-mass F 500 thermal mass flowmeter

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

Proline Promass P 100 Coriolis Flowmeter

Specialist for Life Sciences with Ultra-Compact Transmitter

Dedicated to applications under sterile conditions in the life sciences industry, combining the enhanced performance of a bent tube meter with the drainability of a straight tube meter.

Key Specifications

Measurement Accuracy

Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Temperature Range

Standard: -50 to +150 °C (-58 to +302 °F)
Option: -50 to +205 °C (-58 to +401 °F)

Max Process Pressure

PN 63, Class 300, 40K

Field of Application

Promass P 100 offers the enhanced performance of a bent tube meter and the drainability of a straight tube meter without compromise. Combined with the smallest transmitter housing available today, it delivers full performance on the smallest footprint. Designed for applications in sterile environments where space is premium, Promass P 100 is the preferred choice for system integrators, skid builders and equipment manufacturers.

Key Features

Measuring principle operates independently of physical fluid properties
Dedicated for sterile applications in life sciences industry
ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP processes
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Primary Benefits

Highest process quality - fully compliant to industry requirements
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no inlet/outlet run requirements
Space-saving transmitter - full functionality on smallest footprint
Time-saving local operation without additional software - integrated web server
Integrated verification - Heartbeat Technology

Technical Details

Measuring Principle

Coriolis

Nominal Diameter

DN 8 to 50 (⅜ to 2")

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)
Option: -50 to +60 °C (-58 to +140 °F)

Digital Communication

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

Power Supply

DC 20 to 30 V

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product Safety: CE, C-Tick, EAC marking
Metrological: ISO/IEC 17025, Heartbeat Verification
Pressure: PED, CRN
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, ASME BPE, ISPE, cGMP
