Name: KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSM
Price: 5,000.00 USD
Availability: InStock

À la maison > produits > Environmental Monitoring >

KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output

Nom de marque:

KACISE

Certification:

Numéro de modèle:

KQS-CSM

Nous contacter

Demandez un devis

KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output

Détails du produit

Éléments de mesure:

Vitesse du vent, direction du vent, température, humidité, pression barométrique, boussole ; Faculta

Consommation d'énergie:

0,2 W (5 éléments avec boussole, pas de chauffage)

Signal de sortie:

RS485 (MODBUS-RTU)

Degré de protection:

IP65

Matériel:

Plastique ASA résistant aux UV

Poids:

~200g (5 paramètres)

Conditions de paiement et d'expédition

Quantité de commande min

1 PIÈCES

Détails d'emballage

Chaque unité a une boîte individuelle et toutes les boîtes sont emballées dans des packages standard

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces / pièces par semaine négociables

Produits connexes

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenez le meilleur prix

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenez le meilleur prix

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenez le meilleur prix

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

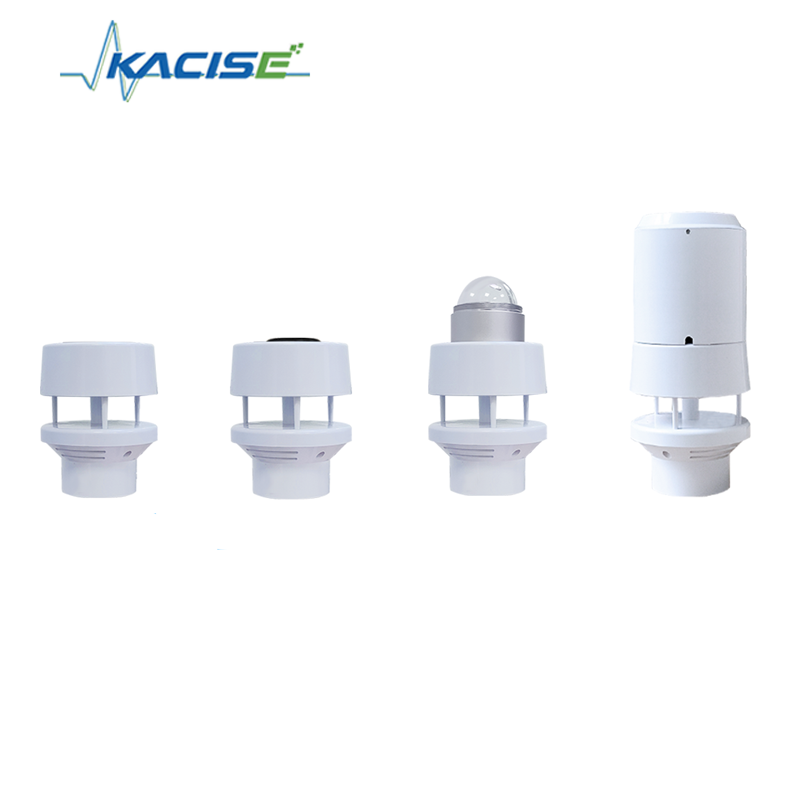

KQS-CSM MINI Ultrasonic Environment Monitor

The KQS-CSM MINI is a cost-effective micro weather monitoring instrument featuring low-power chips and circuit design. With standard 5-element power consumption of only 0.2W, it's ideal for solar or battery-powered applications. The compact design measures approximately 8cm in diameter and 10cm in height, integrating wind speed, wind direction, temperature, humidity, barometric pressure, and optional elements into a single compact structure. All parameters output via RS485 digital interface for 24-hour continuous outdoor monitoring, with optional low-temperature heating available.

Product Features

Selectable monitoring elements: wind speed/direction, temperature/humidity, pressure, compass, rainfall/illuminance/radiation
Low cost, suitable for grid deployment
Ultra-low power consumption of only 0.2W
Compact, modular design for easy integration
Efficient filtering with rain/fog compensation for data stability
Each unit factory-tested to meet national standards
Wide adaptability: tested for high/low temp, waterproof, salt spray. Optional heating for -40°C to 70°C

Technical Specifications

Electrical & Mechanical Parameters

Parameter	Electrical	Mechanical
Power Supply	DC9V-30V or 5V 12V or 24V with heating	Material: ASA UV-resistant plastic Connector: Aviation plug, 3m cable
Power Consumption	200mW (5-elements with compass, no heating)	Color: Milky white
Output Signal	RS485 signal	Protection: IP65
Operating Humidity	0~100%RH	Weight: ~200g (5-parameter)
Operating Temperature	-40°C to +70°C

Sensor Specifications

Configuration	Element	Range	Accuracy	Resolution/Power
Standard 2-el.	Wind Speed	0~45m/s Start ≤0.8m/s	±(0.5+0.02V)m/s	0.01m/s / 0.12W
Standard 2-el.	Wind Direction	0~360°	±3°	1°
Optional	Temperature	-40~80°C	±0.3°C	0.1°C / 1mW
	Humidity	0~100%RH	±5%RH	0.1%RH
	Barometric Pressure	300~1100hPa	±0.5hPa (25°C)	0.1hPa / 0.1mW
	Compass	0~360°	±5°	1° / 10mW
Optional (Radiation/Rain/Illuminance)	Rain (Droplet)	0~4.00mm/min	±4% (indoor)	0.03mm / 0.24W
	Illuminance	0~200000Lux	±4%	1Lux / 0.1mW
	Solar Radiation	0~1500W/m²	±3%	1W/m² / 400mW

Total power = selected sensor(s) + base 150mW + heating 60W (optional)

Mounting Dimensions
