Name: Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSYT-A
Price: 5,000.00 USD
Availability: InStock

À la maison > produits > Environmental Monitoring >

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Lieu d'origine:

Chine

Nom de marque:

KACISE

Certification:

Numéro de modèle:

KQS-CSYT-A

Nous contacter

Demandez un devis

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Détails du produit

Plage de vitesse du vent:

0-70 m/s

Paramètres mesurés:

Vitesse du vent, direction du vent, température, humidité, pression, boussole, GPS (en option)

Précision:

Vitesse du vent : ±(0,5+0,02rdg) m/s ; Direction du vent : ±3° ; Température : ±0,3 °C

Protection:

Structure entièrement scellée résistante à la corrosion et aux brouillards salins

Application:

Ports, îles, navires, plateformes de forage pétrolier offshore

Sortie de signal:

RS485 avec protocole Modbus standard

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Détails d'emballage

Chaque unité a une boîte individuelle, toutes les boîtes étant emballées dans des emballages standar

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement

1000 pièces/pièces par semaine négociable

Produits connexes

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Obtenez le meilleur prix

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Obtenez le meilleur prix

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Obtenez le meilleur prix

Instrument de surveillance de l'humidité du sol multicouche tubulaire KQS-GTM avec technologie FDR pour la surveillance multicouche (10/20/30/40 cm) et l'énergie solaire

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

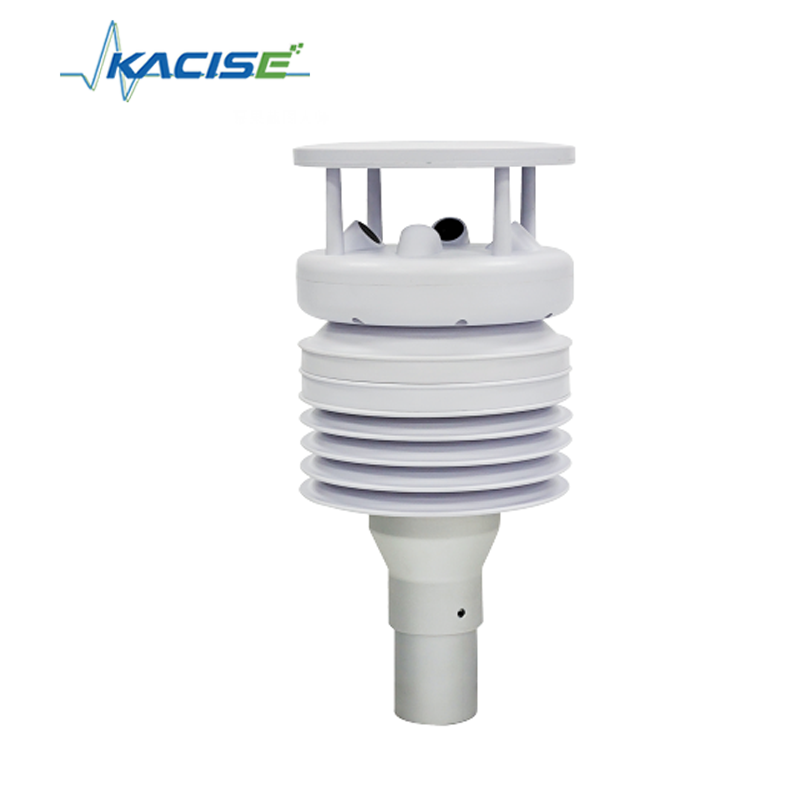

KQS-CSYT-A Corrosion-Resistant Ultrasonic Environmental Monitor

The KQS-CSYT-A corrosion-resistant ultrasonic environmental monitor is a meteorological environmental monitoring instrument specifically designed for marine environments or highly corrosive gas environments. Compared with traditional ultrasonic environmental monitors, it features specially selected corrosion-resistant ultrasonic transducers and a specialized structural design that enhances corrosion resistance and sensor probe replaceability.

Product Features

Designed for harsh marine environments; temperature, humidity, and pressure sensors use polymer membranes to extend service life
Easy maintenance: when the temperature/humidity probe reaches end of life, it can be replaced directly without returning the entire unit for repair
Advanced filtering algorithms with special compensation for rain and fog conditions
Uses high-quality 200 kHz ultrasonic transducers for more accurate and stable wind measurement
Salt-spray resistant probes with fully sealed structure, tested to national standards; suitable for coastal and port environments
RS485 output with standard Modbus protocol for easy system integration
Modular and highly integrated design
Low power consumption
Optional heating function, electronic compass, and GPS support

Technical Parameters

Environmental Parameter (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-70 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02rdg) m/s	0.01 m/s	0.1 W
Wind direction	0-360°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	1 mW
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa	0.1 mW
Electronic compass	0-360°	±5°	1°	100 mW
GPS (longitude)	-180° to 180°	≤10 m	0.1 s	--
GPS (latitude)	-90° to 90°	≤10 m	0.1 s	--
GPS (altitude)	-3276.7 to 3276.7 m	≤3 m	0.1 m	--

Total Power Consumption: Total power = power of selected sensors + base board power; base board power is 300 mW.

Dimensions
